List of electric locomotives of India

This is a list of all electric locomotives that have been or are being operated by Indian Railways.

Classification

Locomotives were classified by track gauge, motive power, function and power (or model number) in a four- or five-letter code. The first letter denotes the track gauge. The second letter denotes motive power (diesel or electric), and the third letter denotes use (goods, passenger, mixed or shunting). The fourth letter denotes a locomotive's chronological model number.

In 2002, a new classification system was adopted. For newer diesel locomotives, the fourth letter denotes their horsepower range. Not all diesel locomotives were reclassified, and the fourth letter continues to denotes their model number.

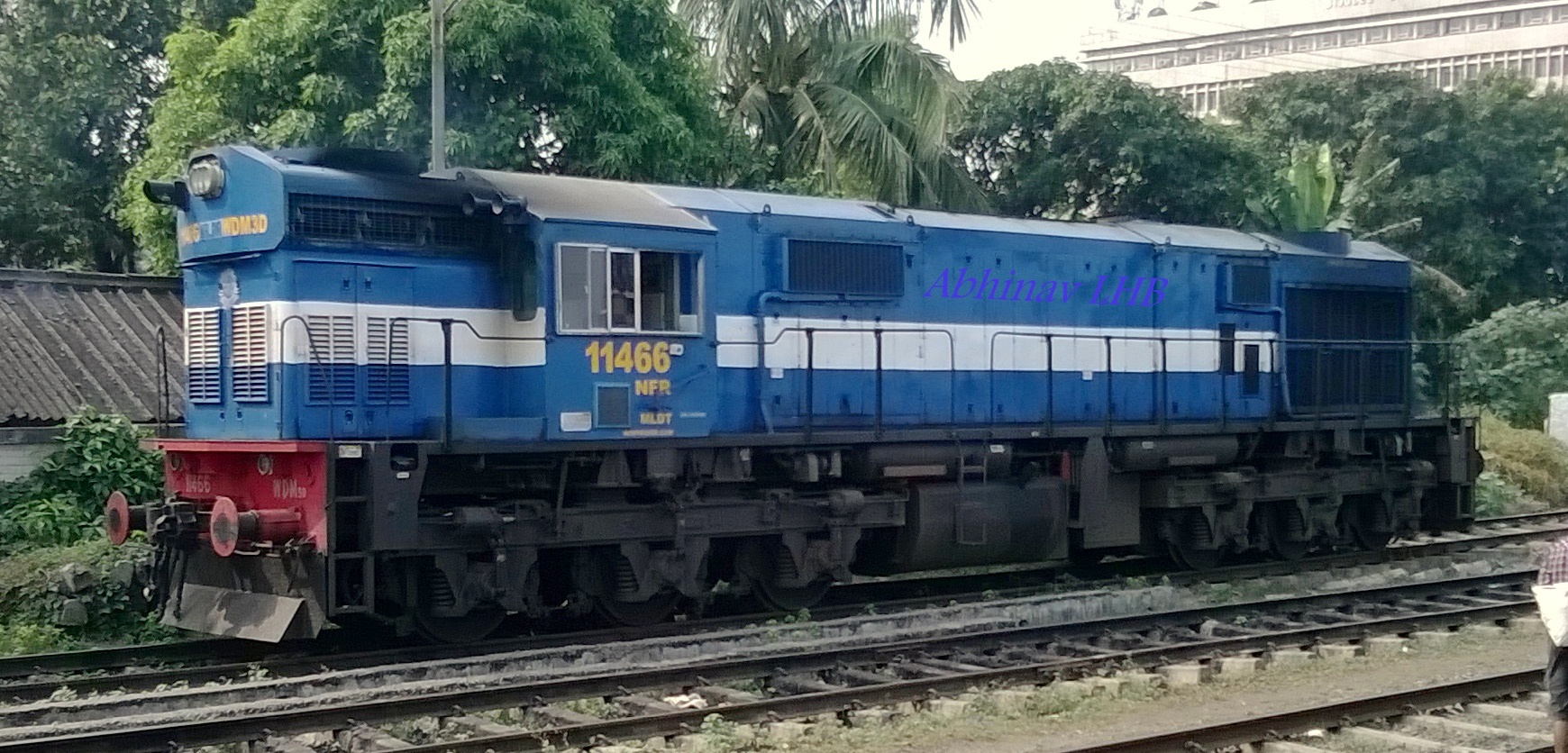

A locomotive may have a fifth letter, generally denoting a technical variant, subclass or subtype: a variation in the basic model or series, or a different motor or manufacturer. Under the new system, the fifth letter further refines horsepower in 100-hp increments: A for 100 hp, B for 200 hp, C for 300 hp and so on. A WDP-3A is a 3,100 hp (2,300 kW) locomotive, and a WDM-3F is 3,600 hp (2,700 kW).

The system does not apply to steam locomotives, which are no longer used on main lines. They retain their original class names, such as M- or WP-class.

Nomenclature

• First letter (gauge):
  • W – Broad gauge (wide) – 5 ft 6 in (1,676 mm)
  • Y – Metre gauge (yard) – 1,000 mm (3 ft 3+3⁄8 in)
  • Z – 2 ft 6 in (762 mm) narrow gauge
  • N – 2 ft (610 mm) narrow (toy) gauge
• Second letter (motive power):
  • D – Diesel
  • C – DC electric (DC overhead line)
  • A – AC electric (AC overhead line)
  • CA – DC and AC (AC or DC overhead line); CA is considered one letter
  • B – Battery (rare)
• Third letter (usage):
  • G – Goods
  • P – Passenger
  • M – Mixed (goods and passenger)
  • S – Shunting (switching)
  • U – Multiple unit (electric or diesel)
  • R – Railcar

In WCM-4, W denotes broad gauge; C denotes DC Electric power; M denotes mixed use (goods and passenger service), and 4 denotes fourth Generation. In WAP 5, W is broad gauge; A is AC electric; P is passenger service, and 5 indicates that the locomotive is the fifth model used.

Broad-gauge locomotives

Broad-gauge electric classification codes are:

• WAM - Wide AC electric mixed
• WAP - Wide AC electric passenger
• WAG - Wide AC electric goods
• WCM - Wide DC electric mixed
• WCP - Wide DC electric passenger
• WCG - Wide DC electric goods
• WCAM - Wide AC/DC electric mixed
• WCAG - Wide AC/DC electric goods
• WCAS - Wide AC/DC electric shunter

AC mixed class (WAM Series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WAM-1	Kraus-Maffei	Bo-Bo	36	1960-64	2,910 hp	Retired	None		File:WAM-1.jpg
WAM-2	Mitsubishi	Bo-Bo	36	1960-64	2,910 hp	Retired	None
WAM-3	Mitsubishi	Bo-Bo	2	1964	2,400 hp	Retired	None
WAM-4	CLW	Co-Co	500	1970-1983	3,850 hp	In service	6 Earmarked

AC passenger class (WAP series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WAP-1	CLW	Co-Co	65	1980-1996	3,900 hp	In service	1 Earmarked
WAP-2	Mitsubishi	Bo-Bo	4 rebuilt from WAM-2	1960–1964	2,910 hp	Retired	None
WAP-3	CLW	Co-Co	9, all rebuilt from WAP-1	1987-1988	3,900 hp	Retired/ In service as WAP-1	None
WAP-4	CLW	Co-Co	778	1993-2015	5,350 hp	In service
WAP-5	ABB/CLW	Bo-Bo	235	1995–Present	6,000 hp	In service
WAP-6	CLW	Co-Co	17	1995-1998	5,350 hp	Retired/In service as WAP-4
WAP-7	CLW/BLW/PLW	Co-Co	1423	2000– present	6,350 hp	In service		WAP-7 ED #39231 standing at Whitefield

AC goods class (WAG series)

Name	Manufacturer	Wheel Arrangement	Quantity Built	Built year(s)	Power	Current Status	Preserve	Comments	Picture
WAG-1	CLW	B-B	112	1963-1966	2,930 hp	Retired	1 unit
WAG-2	Hitachi /Toshiba /Mitsubishi	B-B	45	1964-1965	3,450 hp	Retired	None
WAG-3	Henschel/CLW	B-B	10	1965	3,300 hp	Retired	None
WAG-4	CLW	B-B	186	1967-1969	3,590 hp	Retired	None

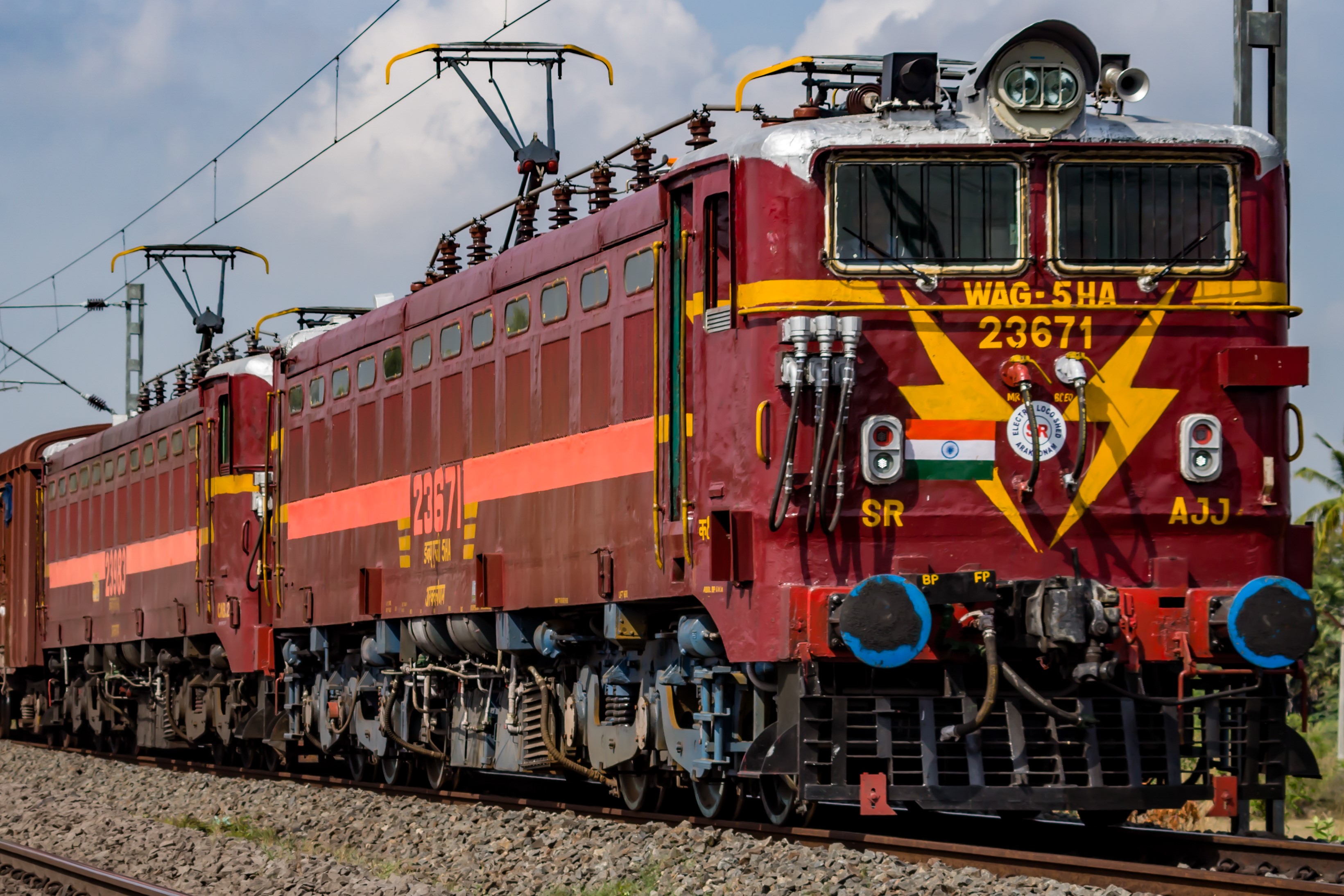

WAG-5	CLW/BHEL	Co-Co	1196	1978-1998	4,360 hp	In service	1 unit
WAG-6A	ASEA	Bo-Bo-Bo	6	1988-1989	6,110 hp	In service	1 unit
WAG-6B	Hitachi	Bo-Bo-Bo	6	1988	6,110 hp	In service	1 unit
WAG-6C	Hitachi	Co-Co	6	1988	6,110 hp	In service	1 unit
WAG-7	CLW/BHEL	Co-Co	1970	1990-2015	5,350 hp	In service	1 unit earmarked
WAG-8	BHEL	Co-Co	1	1990	5,000 hp	Retired/Never went into service	None
WAG-9	ABB/CLW/BHEL/BLW/PLW	Co-Co	3134	1996–present	6,125 hp	In service
WAG-10	BLW	Co-Co-Co-Co	2	2018–present	10,000 hp	In service
WAG-11	BLW	Co-Co-Co-Co/Co-Co	4	2018–present	11,000 hp	Undergoing trials
WAG-12	Alstom	Bo-Bo-Bo-Bo	224	2017–present	12,000 hp	In service

DC mixed class (WCM series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WCM-1	English Electric/Vulcan Foundry	Co-Co	7	1954-1955	3,700 hp	Retired	1
WCM-2	English Electric/Vulcan Foundry	Co-Co	12	1956-1957	3,120 hp	Retired	None		File:WCM 2.jpg
WCM-3	Hitachi	Co-Co	3	1958	3,600 hp	Retired	None		File:WCM-3.jpg
WCM-4	Hitachi	Co-Co	7	1960	4,000 hp	Retired	None
WCM-5	CLW	Co-Co	21	1961-1963	3,700 hp	Retired	1 unit		File:WCM 5.jpg
WCM-6	CLW	Co-Co	2	1995	5,000 hp	In service

DC passenger class (WCP series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WCP-1	SLM / MetroVick	2-Bo-A1	22	1928-30	2,160 hp	Retired	1 unit
WCP-2	SLM / MetroVick	2-Bo-A1	1	1938	2,160 hp	Retired	1 unit
WCP-3	Hawthorn Leslie, Marconi Company	2-Co-2	1	1928	2,250 hp	Retired	None
WCP-4	Hawthorn Leslie, BBC	2-Co-2	1	1928	2,390 hp	Retired	None

DC goods class (WCG series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WCG-1	SLM / MetroVick /Vulcan Foundry	C+C	41	1928-1929	2,600-2,890 hp	Retired	2 units
WCG-2	SLM / MetroVick	Co-Co	57	1970-1976	4,200 hp	Retired	2 units

Dual current (DC and AC) mixed class (WCAM Series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WCAM-1	CLW	Co-Co	54	1975-1979	2,930 hp DC 3,640 hp AC	Retired	None	First mainline electric locomotive
WCAM-2	BHEL	Co-Co	20	1995-1996	3,780 hp DC 4,720 hp AC	In service
WCAM-3	BHEL	Co-Co	53	1997-1998	4,600 hp DC 5,000 hp AC	In service

Dual current (DC and AC) goods class (WCAG Series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
WCAG-1	BHEL	Co-Co	12	1999-2000	4,600 hp DC 5,000 hp AC	In service

Metre-gauge locomotives

Metre-gauge electric classification codes are:

• YAM – Metre gauge AC electric mixed
• YCG – Metre gauge DC electric goods

AC mixed class (YAM Series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture

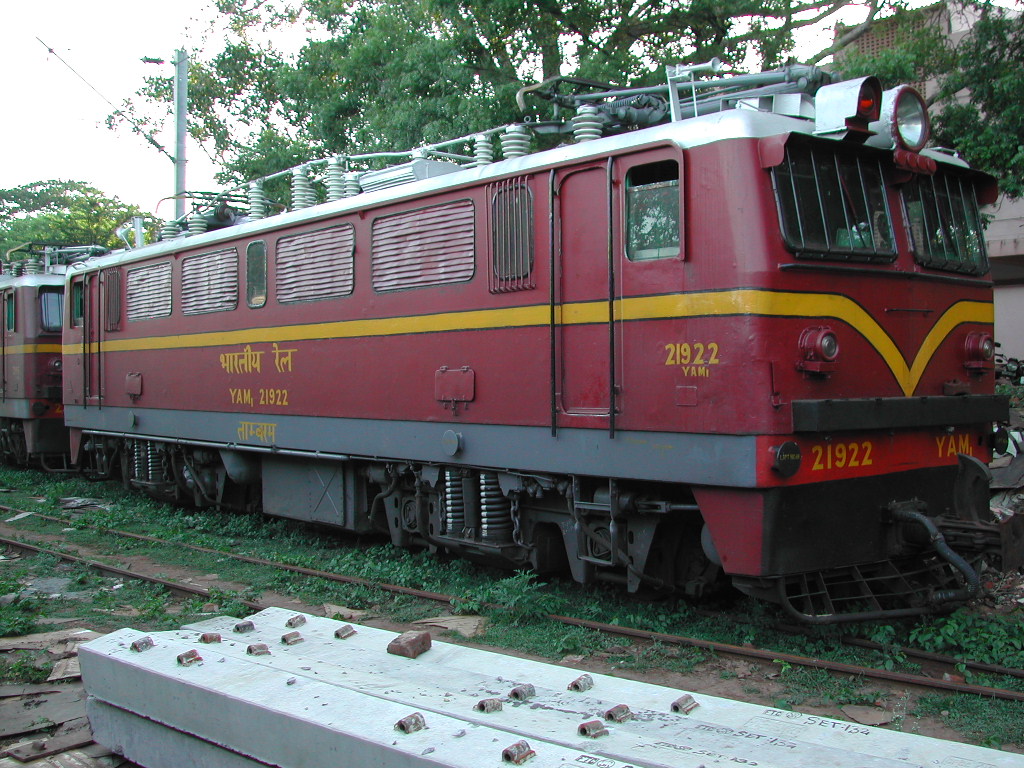

YAM-1	Mitsubishi	B-B	20	1964-66	1,740 hp	Retired		Twenty 1,740 hp (1,300 kW) locomotives, imported from Japan, were in service until 2004 in the Chennai area.

DC goods class (YCG series)

Name	Manufacturer	Wheel Arr	Quantity Built	Built year(s)	Power	Current Status	Preserved units	Comments	Picture
YCG-1	HL / EE	Bo+Bo	4	1930	640 hp	Retired		Among India's earliest electric locomotives, the class was imported to serve the Chennai area in the early 1930s
