Thiruvananthapuram–Kanyakumari line

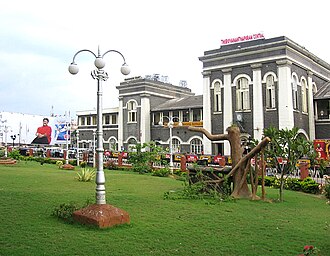

Thiruvananthapuram Central Station main building
Overview
StatusOperational
OwnerSouthern Railway zone
LocaleKerala
Tamilnadu
TerminiThiruvananthapuram Central (TVC)
Kanyakumari (CAPE)
Stations16
WebsiteSouthern Railway
Service
TypeRegional rail
Light rail
SystemElectrified
Services1
Operator(s)Thiruvananthapuram
Rolling stockWAP-1, WAP-4 electric locos; WDS-6, WDM-2, WDM-3A, WDP-4 and WDG-3A, WDG-4
History
Opened1979; 45 years ago (1979)[1]
Electrification2012[2]
Technical
Line length86 kilometres (53 mi)
Number of tracks1
Track gauge1,676 mm (5 ft 6 in)
Loading gauge4,725 mm × 3,660 mm (15 ft 6.0 in × 12 ft 0.1 in) (BG)[3]
ElectrificationOverhead catenary
Operating speed100 kilometres per hour (62 mph) (between Thiruvananthapuram Central and Nagercoil Junction)
90 kilometres per hour (56 mph) (between Nagercoil Junction and Kanyakumari)[4]
Route map
Template:Tirunelveli–Nagercoil (Kanyakumari)–Trivandrum Central line
Foundation Stone

The Thiruvananthapuram–Nagercoil–Kanyakumari line is a line in the Southern Railway zone of Indian Railways. It connects the cities Thiruvananthapuram and Nagercoil. The railway opened on 15 April 1979.

History[edit]

In 1955, a survey for the railway line was sanctioned.[5] It was completed in 1965, and construction began on 6 September 1972 with a ceremony with Prime Minister Indira Gandhi.[6] On 15 April 1979, the line began to operate.[7]

The Thiruvananthapuram-Nagercoil-Kanyakumari railway line is fully electrified.[2] Track doubling work is in progress[8] and is expected to finished in 2022.[9]

Stations[edit]

There are 16 railway stations along the line. The major stations are Nagercoil Junction, Nagercoil Town, Eraniel, Kulitthurai, and Neyyattinkara. Nemom, the second satellite passenger terminal to the proposed Thiruvananthapuram Central, also comes under this section.

The train line has seen financial gain, and its earnings are shown below.[10] Stations in bold letters generated a minimum of 2 crore.

Sl. No Station Name Category[11][12][note 1] (based on 2011-12 earnings) Earnings during 2016-17 Total no. of passengers booked during 2016-17 Passengers per day Daily avg. earnings during 2016-17
1 Thiruvananthapuram Central (TVC) NSG 2/ A1 1844816371 14363426 39352 5054291
2 Nemom (NEM) NSG 6/E 459865 64823 178 1260
3 Balaramapuram (BRAM) NSG 6/E 1229900 189367 519 3370
4 Neyyattinkara (NYY) NSG 5/D 20004580 1814997 4973 54807
5 Amaravila Halt (AMVA) HG 2/F 724075 124130 340 1984
6 Dhanuvachapuram (DAVM) HG 2/F 2080930 385654 1057 5701
7 Parassala (PASA) NSG 5/E 17622854 1182863 3241 48282
8 Kuzhuthurai West (KZTW) HG 2/F 2218990 257362 705 6079
9 Kulitthurai NSG 5/B 61304832 1337257 3664 167958
10 Palliyadi (PYD) HG 2/F 890791 123953 340 2441
11 Eraniel (ERL) NSG 5/D 22149696 526474 1442 60684
12 Viranialur (VRLR) HG 2/F 607565 63872 175 1665
13 Nagercoil Town (NJT) HG 1/F 14865233 131912 361 40727
14 Nagercoil Junction (NCJ) NSG 3/A 464332656 2380085 6521 1272144
15 Suchindram (SCH)
16 Kanyakumari (CAPE) NSG 4/A 83780622 695368 1905 503509

Rail traffic[edit]

Around 35 trains run on the line. The longest-running train service in India (Dibrugarh–Kanyakumari Vivek Express) operates on the line. More trains are expected to be introduced along the route with the completion of track doubling.

The operating speed of trains running between Thiruvananthapuram to Nagercoil ranges from 80 to 100 km per hour. Trains operating from Kanyakumari to Nagercoil run from 75 to 90 km per hour.[4]

Notes[edit]

  1. Station grouping has been separated into three categories. Non-suburban (NS), Suburban (S), and Halt (H). These groups have further been put in grades ranging from NSG 1-6, SG 1-3 and HG 1-3, respectively.
