Shruti (music)
Indian classical music |
---|
Concepts |
Shruti or śruti[ɕrʊtɪ] is a Sanskrit word, found in the Vedic texts of Hinduism where it means lyrics and "what is heard" in general.[1][2][3] It is also an important concept in Indian music, where it means the smallest interval of pitch that the human ear can detect and a singer or musical instrument can produce and do nyaas(stay) on it.[4][5] The musical shruti concept is found in ancient and medieval Sanskrit texts such as the Natya Shastra, the Dattilam, the Brihaddeshi, and the Sangita Ratnakara.[4][6] Chandogya Upanishad speaks of the division of the octave in 22 parts.[7]
The swara differs from the shruti concept in Indian music. A shruti is the smallest gradation of pitch available, while a swara is the selected pitches from which the musician constructs the scales, melodies and ragas. The Natya Shastra identifies and discusses twenty two shruti and seven swara per octave.[4][6][8] Of the twenty two shruti, veena scholars identified the 4th shruti to be sa solfege, 7th to be re, 9th as ga, 13th as ma, 17th as pa, 20th to be dha and 22nd as ni shuddha swara.[9] With the course of time(the present system), the Sa swar is reloacated to the 1st shruti and whole svar saptak is contructed accordingly.
It has been used in several contexts throughout the history of Indian music. Recent research has more precisely defined the term shruti, its difference from nada and swara, and pinpointed positions on a string to play 22 shrutis.[10][11][12]
The most well-known example of shrutis is probably the use of the ati-komal (extra flat) gandhar in raga Darbari. Others include the rishabh in Bhairav, the nishad in Bhimpalasi and Miya Malhar, and the gandhar in Todi.
Meaning[edit]
This section may be too technical for most readers to understand.(March 2014) |
The meaning of shruti varies in different systems.[13]
Grama system[edit]
Bharata Muni uses shruti to mean the interval between two notes such that the difference between them is perceptible. He formulates jatis, which are classes of melodic structures. These can be further grouped into two gramas—shadja-grama and madhyama-grama. The notes (swaras) are separated by intervals, as measured in shrutis.
The shadja-grama is given by the following division: Sa of four shrutis, Ri of three shrutis, Ga of two shrutis, Ma of four shrutis, Pa of four shrutis, Da of three shrutis and Ni of two shrutis. Abhinavagupta describes an experiment to obtain the correct physical configuration of shruti in shadja grama, Sarana Chatushtai.
The madhyama-grama is the same, but the panchama (Pa) has to be diminished by one shruti. That is, the panchama of madhyama-grama is lower than that of shadja-grama by one shruti, according to Bharata. Shruti is only mentioned as a perceptual measure in the music of Bharata's time.
In both the gramas, Ri is three shrutis away from Sa – there are three perceptible intervals between Sa and Ri. The third of these is called trishruti rishabha (Ri). Likewise, the second interval is called dvishruti rishabha, and the first ekashruti rishabha.
Notes 9 and 13 shrutis from each other occur at a ratio of 100:133.33(3:4) and 100:150(2:3) respectively and are mutually samvādi (consonant). The notes that are at the distance of two and 20 shrutis are mutually vivādi (dissonant). The remaining ones are called anuvādi (assonant).
The shruti table below shows the mathematical ratios considered to correspond to the system described by Bharata and Dattilam, along with the comparable notes in common Western 12-TET tuning. The names of the 22 shrutis were provided by Śārñgadeva.
Shrutis | 12-TET | 53-TET | |||||
---|---|---|---|---|---|---|---|
Name | Ratio | Cents | Frequency (Hz) |
Name | Frequency (Hz) |
Step | Cents |
Chandovatī | 1 | 0 | 261.6256 | C | 261.6256 | 0 | 0 |
Dayāvatī | 256/243 | 90 | 275.6220 | D♭ | 277.1826 | 4 | 90.57 |
Ranjanī | 16/15 | 112 | 279.0673 | 5 | 113.21 | ||
Ratikā | 10/9 | 182 | 290.6951 | D | 293.6648 | 8 | 181.13 |
Raudrī | 9/8 | 203 | 294.3288 | 9 | 203.78 | ||
Krodhā | 32/27 | 294 | 310.0747 | E♭ | 311.1270 | 13 | 294.34 |
Vajrikā | 6/5 | 316 | 313.9507 | 14 | 316.98 | ||
Prasāriṇī | 5/4 | 386 | 327.0319 | E | 329.6275 | 17 | 384.91 |
Prīti | 81/64 | 407 | 331.1198 | 18 | 407.55 | ||
Mārjanī | 4/3 | 498 | 348.8341 | F | 349.2282 | 22 | 498.11 |
Kṣhiti | 27/20 | 519 | 353.1945 | 23 | 520.75 | ||
Raktā | 45/32 | 590 | 367.9109 | F♯ | 369.9944 | 26 | 588.68 |
Sandīpanī | 729/512 | 612 | 372.5098 | 27 | 611.32 | ||
Ālāpinī | 3/2 | 702 | 392.4383 | G | 391.9954 | 31 | 701.89 |
Madantī | 128/81 | 792 | 413.4330 | A♭ | 415.3047 | 35 | 792.45 |
Rohiṇī | 8/5 | 814 | 418.6009 | 36 | 815.09 | ||
Ramyā | 5/3 | 884 | 436.0426 | A | 440.0000 | 39 | 883.02 |
Ugrā | 27/16 | 906 | 441.4931 | 40 | 905.66 | ||
Kṣobhinī | 16/9 | 996 | 465.1121 | B♭ | 466.1638 | 44 | 996.23 |
Tīvrā | 9/5 | 1017 | 470.9260 | 45 | 1018.87 | ||
Kumudvatī | 15/8 | 1088 | 490.5479 | B | 493.8833 | 48 | 1086.79 |
Mandā | 243/128 | 1110 | 496.6798 | 49 | 1109.43 | ||
Chandovatī | 2 | 1200 | 523.2511 | C | 523.2511 | 53 | 1200 |
Mela system[edit]
By the time Venkatamakhin formulated the melakarta ("mela") system, the grama system was no longer in use. Unlike the grama system, the mela system uses the same starting swara. It forms the scales by varying the intervals of the subsequent swaras, and does not specify a fixed interval for a swara in terms of shrutis. For example, the intervals of kakali-nishad and shuddha-madhyam vary depending on the dhaivat and the gandhar that precede them, respectively. The interval of kakali-nishad is of three different shruti values depending on whether shuddha, pancha-shruti or shat-shruti-dhaivat preceded it. Thus shruti as a measure of interval is not fully employed in the mela system.
Controversy[edit]
In current practice of Carnatic music, shruti has several meanings.[14] It is used by musicians in several contexts. For instance, the Tamil term "Oru kattai sruti (ஒரு கட்டை ஸ்ருதி)" means that the tonic is set to the pitch C or the first key. The Telugu term "Shruti chesuko (శ్రుతి చేసుకో)" is a way to correspond with the accompanying artists to tune their instruments.
In certain ragas, due to inflexions or gamakas on some of those 12 notes, listeners perceive a sharpened or flattened version of an existing note.[15] Some scholars have attempted to fit such perceived new tones into the non-contextual Bharata's 22 shrutis, which lead to confusion and controversy. It was also wrongly attributed to Bharata, who proposed shruti in a completely different context.
Some scientific evidence shows that these intermediate tones perceived in the contemporary rendition of a raga do not hint at the existence of 22 shrutis. The number 22 is of no practical significance in the current performance of Carnatic and Hindustani music traditions, partly because different musicians use slightly different "shrutis" when performing the same raga, an example being the ati-komal (extra flat) gandhar in Darbari. The phenomenon of intermediate tones is pursued as an active area of research in Indian Musicology, which says the number of perceptible intermediate tones may be less or more than 22.[15] N. Ramanathan, a musicologist points this out and says that the idea of 22 shrutis is applicable only to the music system of Bharata's time.
An Indian monograph about shruti claims various opinions about the number (66, 53) of shrutis. In recent times it seems that the number of shrutis is broadly agreed upon to be 22. Recognizing the controversy over the number and the exact ratios of shruti intervals, it also says that not all shruti intervals are equal[16] and known as pramana shruti (22%), nyuna shruti (70% cents) and purana shruti (90%).[17] Еach shruti may be approximated in 53EDO system.[18]
Relationship to Dhwani, Nada, and Swara[edit]
This section may be too technical for most readers to understand.(March 2014) |
Shruti is intimately linked to the fundamental aspects of Swara.[19]
Dhwani (Sanskrit) means sound of any kind. Out of all the Dhwanis created in the world, sounds that are 'musical'—give an experience or perception of a 'musical' sound—are called Nadas. The sound of a 'clap' is a dhwani, but that of a bell is a nada. The commonest example of nada is a musical sound made on a stretched string under constant tension. There are innumerable 'Nadas' in a Saptak (Octave). Chaturdandi Prakashika (Sanskrit) by Pandit Venkatamakhin[20] in Shloka 3, Chapter 2, stated that,
ShrutirnÂma BhavennÂda Visheshah SwarakÂranam Nanu NÂsti Swarashrutyorbhedo NÂdaikrupayoho
meaning,
'Shrutis are the 'special' nadas that cause swaras. There is no difference between swaras and shrutis as both are nadas'.
Out of the innumerable 'Nadas' on a string, 22 become 'special' and are called shrutis because the perception of the 12 universal pitch classes of Chromatic scale (Swara-prakara) 'changes' with them. Further, Sshrutis 'selected' in a Raga 'cause' (or become) the swaras. Thus, shrutis are called swaras in a raga, and both are primarily nadas.
In this way, sounds (dhwanis) are progressively classified as:
- All sounds in the world are dhwanis.
- Selected dhwanis become nadas, (innumerable), which provide a musical experience.
- Selected nadas become shrutis, (22), which create a change in the perception of 12 swaraprakaras (universal chromatic pitch classes) as we play them from one end of the string. This change happens only at 22 points as placed by nature.
- Selected (12 or fewer) shrutis become swaras —used in a particular raga.[21]
Matanga's conclusion is highly significant that 'Swaras' are manifested through the 'Shrutis'.[19] Note that swara in a raga (1 single frequency), is different from swaraprakara (12 universal pitch classes of a chromatic scale with a range of different frequencies). Gamakas or alankaras or ‘specific tonal configurations forming the core of a Raga’ [19] are merely a combination of shrutis and nadas. (See section 2.9).
Identification of a shruti, distinct from nada[edit]
In performance, notes identified as one of the 12 universal pitch classes of Chromatic scale (swara-prakara) are the shrutis, and connected unidentified notes between them are nadas. The human ear takes about '20–45 msec' to identify a note within the range of the human voice—from 100–1000 Hz.[22] Thus, the ear can identify shrutis played or sung longer than that—but cannot identify nadas played or sung faster than that limit, but can only hear them. Lack of appreciation of this difference has led to many scientists to opine that because of the meend and the oscillating notes, it is hard to determine the exact numerical frequencies.[23] In a glide or meend. E.g., there are two 'Shrutis' at the two ends, which are connected by nadas in-between. This in fact, is the basic structure of any phrase created in Indian Music (Hindustani and Carnatic), as two or more shrutis connected by nadas. Indian Classical Music (both Hindustani and Carnatic) employs a combination of identifiable 'shrutis' and connecting, fleeting, unidentifiable nadas in any Alankara or Gamaka (Music).
Natural existence of 22 shrutis on a string[edit]
In ancient times, shruti was described in Sanskrit as Shruyate iti Shruti, meaning, "What is heard is a shruti". This loose translation created confusion because, Shru (in Sanskrit) does not merely mean "to hear", but to "hear, understand and learn". The "understanding" and "learning" part is the natural fact that on 22 specific points on a string, the perception of notes changes.[24]
Brihaddeshi (Sanskrit) by Pandit Matanga [25] mentions after Shloka 24, in Shrutiprakarana (Chapter on Shrutis) that,
- Shravanendriya GrĀhyatvĀd Dhwanireva Shrutirbhavet
meaning, "Only when the ear understands (the point on the string where perception of the notes changes), does that sound become a Shruti." He further says that these points on the string are very precise, as in Shloka 28, Chapter 1, in Nadaprakarana (Chapter on Nadas) that, TĀdĀtmyam Cha Vivartatvam KĀryatvam ParinĀmita AbhivyanjakatĀ Cha api ShrutinĀm Parikathyate [25] {तादात्म्यं च विवर्तत्वं कार्यत्वं परिणामिता अभिव्यञ्जकता चापि श्रुतीनां परिकथ्यते } meaning, "Reaching (the point on the string where the perception of the notes changes), and reverting (from there) results in the precision that is called as 'Shruti."
There are 12 universally identifiable musical notes (pitch classes of Chromatic scale or Swara-prakara) in a Saptak (Octave).They indicate 'a musical note or scale degree, but Shruti is a more subtle division of the octave'.[19] The recent research has shown that 10 out of 12 of these notes (Swaraprakaras) have a 'spread' or a 'region' on a string (Swara-kshetra in Sanskrit) in which, 'any' frequency leads to the perception of the 'same' note by the human ear, and the perception 'changes' at both the ends. The remaining 2 notes, namely the Fundamental frequency (Shadja) and the perfect 5th (Panchama) have a 'single point' on which they are placed on the string by nature. Thus, the 10 notes give 20 Shrutis, and along with the 2 points of Fundamental frequency (Shadja) and the Perfect 5th (Panchama), a natural system of 22 Shrutis can be observed and played on any string.
These 22 Shrutis are not theoretical postulates, but solid musical facts that provide the foundation of Indian music, and have been used for centuries.[21]
Several ancient scholars have cited 22 Shrutis including Dattila (AD 400–100 BC, in Shlokas 12–14), Sarangadeva (AD 1210–1247, after Shloka 11 in Sangeeta Ratnakara), Ramamatya (AD 1550 in Shlokas 24–26 in Swaramelakalanidhi), Somanatha (AD 1609 in Shloka 17, Chapter 1, in Ragavibodha) and Venkatamakhin (AD 1626–1662, in Shloka 5, Chapter 2; Shlokas 2–3, Chapter 3; and Shlokas 94, 105, 106, Chapter 4 in Chaturdandi Prakashika).[20]
The 22 Shrutis can also be called as 'microtones', because they are produced at mathematically defined micro-positions.
The Evolution of 22 Shrutis from Shadja (Fundamental) and their natural arrangement on a string[edit]
All the 22 Shrutis evolve from Shadja (Fundamental).
Figure showing the Evolution of 22 Shrutis from Shadja (Fundamental) and their natural arrangement on a string
The sequentially placed 12 universal pitch classes in an Octave on the string, are represented in the above diagram by the Indian synonyms r, R, g, G, M, m, P, d, D, n, N, S'. Most Western music divides the octave into 12 notes, whereas Indian classical music divides them into 22 notes. Except for P (Perfect 5th) and S'(Fundamental frequency) which are played at a single point each (13 and 22 respectively), all other 10 notes have a 'spread' or a 'region' on the string (Swara-kshetra). The 'beginning' and 'end' of these regions form a total of 22 points. e.g., For the region of r, the perception of r begins at point 1 (called swara-uday-bindu in Sanskrit meaning, the point where the swara emerges or starts) and ends at point '2' (called 'Swara-Asta-Bindu' in Sanskrit meaning, the point where the swara disappears or ends). For the region of 'R', the perception of R begins at point '3' and ends at point '4', and so on.
It is highly significant that Matanga arrives at the conclusion that Swara is manifested through the Shrutis and that Swaras are separated by each other by bands of Shrutis.[19]
Ratios and frequencies[edit]
It was shown in this research that 22 Shrutis are essentially related to Shadja (Fundamental frequency), by most natural interval ratios, 100:125 (S:G) or 100:150 (S:P) as shown in the Figure below. This helps us to get their precise positions and frequencies.
Figure showing 22 Shruti-Mandal (Organogram)
- 1 denotes a 'lower' shruti or the 'beginning' of the region of the note on a string.
- 2 denotes a 'higher' shruti or the 'end' of the region of the note on a string,
- Small letters denote a komal or flatter version (except m, which is 'tara'),
- Capital letters denote a tara or sharper version (except M, which is 'komal'),
- Vertical arrows indicate an interval ratio of 100:125.
- Horizontal arrows indicate an Interval ratio of 100:150.

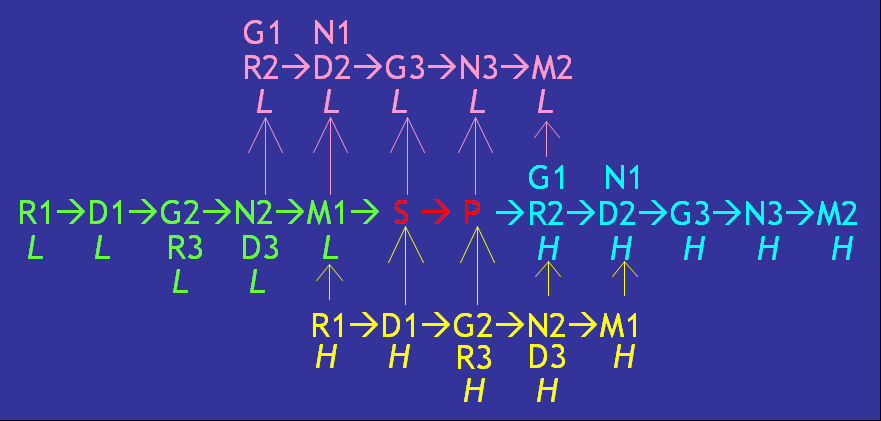

Fig. showing 22 Shruti-Mandal (Organogram) (Carnatic).
12 Swaras with their 16 names are shown as S, R1, R2/G1, R3, G1, G2/R3, G3, M1, M2, P, D1, D2/N1, D3, N1, N2/D3, N3. Their ‘Lower’ and ‘Higher’ Shruti versions are shown respectively marked as ‘L’ and ‘H’ in Italics. Vertical arrow indicates an Interval ratio of 100:125. Horizontal arrow indicates an Interval ratio of 100:150.
To calculate the frequency of Shrutis, for every horizontal arrow, 50% is added; and for every vertical arrow, 25% is added. e.g., to calculate the 'frequency' of P, consider the frequency of Shadja as 100 Hz (for convenience of calculation). Thus, P comes at 100 Hz + 50% = 150 Hz. The ratio of P thus becomes 150/100. To calculate the 'position' of P on the string, we can use the law of Galileo Galilei, called in India as ‘Dviguna’ relationship,[21] which states that the frequency ratio is 'inversely' proportional to the length of the string. Therefore, when the ratio 150/100 is 'inverted' we get the position of P on the string as 100/150 or 2/3 or 66.66% length of the string. We can calculate the frequencies and the positions of all the 22 shrutis accordingly.
Table showing the Ratios, Frequencies, % length of the string where 22 Shrutis are played (*Frequency of the Fundamental frequency or Shadja taken as 100 Hz, as example)
Thus, Shrutis can be expressed as 1) 'Interval ratio', 2) Audio frequency, and 3) The playing position as % length of the string.
There is not a single common note between the European 12-Tone Equal Temperament Scale and the 22-Shruti-Indian scale.[12]
Table shows % frequency above Shadja (Fundamental Tone) of the 12-Tone-Equal Temperament Scale and the 22-Shruti-Indian Scale.
New musical instruments have been made to demonstrate the accurate sounds, the position, and the practical use of 22 shrutis in music, including a 22-Shruti-Harmonium (Indian Patent No. 250197), 22-Shruti-Veena,[26] 22-Shruti-Metallophone and 22 Shruti-Tanpura.[24] In both the Hindusthani and Carnatic classical music, the places for playing 22 shrutis (as % length of the string) remain exactly the same on instruments such as Veena, Sarod, Sitar, Sarangi, Violin as shown in the table and diagram.
4 Shrutis each of the notes R, G, M, D and N progress in a symmetrical order [21] of Poorna, Pramana, Nyuna, Pramana as shown in the diagram.
22 Shrutis are a sub-set of Natural 7 Shrutis[edit]
The Indian Classical Music (both Hindustani and Carnatic) is based on the Tanpura, which produces the 1st 3 natural shrutis, Shadja (1st Harmonic), Gandhar (5th Harmonic), and Pancham (3rd Harmonic), at a ratio of 100:125:150. The basic 7 Shrutis are called ‘Shuddha’ (in Sanskrit meaning pure) in Hindustani Classical Music. They are produced at the same natural ratio as shown in the diagram with a 2-Step process.
Thus, the frequencies of the 1st Natural 7 Shrutis emerge as S=100 (taken for convenience), R=112.5, G=125, M =133.33, P=150, D=166.66, and N=187.5. The 22 Shrutis can be seen as a sub-set of 7 natural Shrutis as shown in the diagram.
Musically, out of the 7 natural Shrutis, (see diagram)
- If R is taken as S, G becomes R1, coming at 111.1111111, a ratio of 10/9.
- If R is taken as S, M becomes g1, coming at 118.518518, a ratio of 32/27.
- If R is taken as S, S’ becomes n1, coming at 177.777777, a ratio of 16/9.
- If G is taken as S, M becomes r2, coming at 106.666666, a ratio of 16/15.
- If G is taken as S, P becomes g2, coming at 120, a ratio of 6/5.
- If G is taken as S, S’ becomes d2, coming at 160, a ratio of 8/5.
- If G is taken as S, R’ becomes n2, coming at 180, a ratio of 9/5.
- If M is taken as S, N becomes m1, coming at 140.625, a ratio of 45/32.
- If M is taken as S, R’ becomes D2, coming at 168.75, a ratio of 27/16.
- If D is taken as S, R’ becomes at M2, coming at 135, a ratio of 27/20.
These 10 Shrutis and the 7 natural Shrutis together make 17 out of 22 Shrutis, directly emerging from 7 natural Shrutis. The remaining 5 Shrutis is just a matter of filling the blanks considering the symmetrical order of R,G,M, D, and N.[21]
Poorna, Pramana and Nyuna Shrutis[edit]
When the frequency and positions of all 22 shrutis are calculated, we get 3 ratios operating between 22 Shrutis as 256/243 (Pythagorean limma or Pythagorean diatonic semitone or Pythagorean minor semitone), 25/24 (a type of Just diatonic semitone) and 81/80 (Syntonic comma). Out of these, 81/80 operates in the 'region' of 10 notes and was called as 'Pramana', in Sanskrit meaning 'Standard' (region of the note). Out of the remaining 2 ratios, the bigger (256/243) was called as Poorna (in Sanskrit meaning 'big'), and the smaller (25/24) was called as 'Nyuna' (in Sanskrit meaning 'small'). Poorna comes between Shrutis 0–1, 4–5, 8–9, 12–13, 13–14, 17–18, and 21–22, Nyuna between Shrutis 2–3, 6–7, 10–11, 15–16, 19–20, and Pramana between Shrutis 1–2, 3–4, 5–6, 7–8, 9–10, 11–12, 14–15, 16–17, 18–19, 20–21. Now, it possible to play a precise note on a string every time without difficulty,[11] because, irrespective of the length of the string or the frequency in which the string is tuned, 7 Poorna, 5 Nyuna, and 10 Pramana Shrutis yield sequentially, perfect playing positions of 22 Shrutis on any string instrument.[12] To eliminate confusion, the words Poorna, Pramana and Nyuna should be called as ‘Shrutyantara’ (in Sanskrit) meaning distance between Shrutis rather than ‘Shruti’, which indicates a musical note. Poorna, Pramana and Nyuna Shrutis correspond respectively to Pythagorean Limma (90 cents), Diatonic Semitone Minor (70 cents), and Comma of Didymus (22 cents).[21]
Shrutis in Shadja Grama[edit]
The basic Indian Scale was called as Shadja Grama in Bharata's Natya Shastra. It had 7 notes emanating at Shruti nos. 3, 5, 9, 13, 16, 18, and 22 (See figure below). The precise places to play these 7 notes on a string is already shown in the above table. Bharata divided the scale of 7 notes by 'no.' of shrutis (distance measured by no. of shrutis).
Figure showing Shadja Grama on a stretched string.
The 1st line shows Shruti nos. The 7 notes are in bold. The 2nd line shows the synonyms and the 7 notes as bold and underlined. The 3rd line shows the Shrutis 'in-between the 7 notes' as bold and undelined,
Bharata's Natya Shastra states in Chapter 28, Shloka 24 that S' is situated on the 4th shruti (after n1), M1 is situated on the 4th Shruti (after g1), P is situated on the 4th Shruti (after M1), R1 is situated on the 3rd Shruti (after S', the cycle repeats from the beginning), D1 is situated on the 3rd Shruti (after P), g1 is situated on the 2nd Shruti (after R1), and n1 is situated on the 2nd Shruti (after D1). Chaturdandi Prakashika (Sanskrit) by Pandit Venkatamakhin in Shloka 105 and 106, Chapter 4, narrates the same sequence of Shrutis as,
Chatush Chatush Chatush Cha Eva Shadja Madhyama Panchamou Dve Dve NishĀda GĀndharou Tri Tri Rishabha Dhaivatou [20]
meaning,
Shadja, Madhyama and Panchama (situated on) 4, 4, and 4; Nishad and Gandhara (situated on) 2 and 2; Rishabha and Dhaivata (situated on) 3 and 3.
Thus, the 7-Note scale as indicated by this arrangement is R1, g1, M1, P, D1, n1 and S', and is called as 'Shadja Grama' in Natya Shastra. This scale is close to the current version of the Kafi (raga). Thus, the notes of Shadja Grama are situated on Shruti nos. 3, 5, 9, 13, 16, 18, and 22; and these notes are separated by 3, 2, 4, 4, 3, 2, and 4 shrutis respectively.
Shadja Grama (the 7 notes documented by Bharata in Natyashastra) is very much in use today, providing the perfect Swaras for Ragas such as Abhogi, Bageshri, Bhimpalasi, and Gorakh Kalyan in Hindustani Classical Music; and Abheri, Reethigowla, and Suddha Dhanyasi in Carnatic Music. All the other Ragas too are derived from selection of different Shrutis as shown in the diagram.
Shrutis in Madhyama Grama[edit]
The ancient Indian musicologists knew that the voice range of females is placed by nature at a 'higher' pitch than males. They, therefore created the scale for females, beginning on the 9th Shruti (M1) with a higher frequency. Hence, this scale was called as Madhyama Grama in Bharata's Natya Shastra. It had 7 notes emanating at the same shruti nos. as in Shadja Grama, i.e., 3, 5, 9, 13, 16, 18, and 22. The precise places to play these 7 notes on a string is already shown in the earlier table. The precise place to play the new shruti, P1 is shown below.
Figure showing Madhyama Grama on a stretched string.
The 1st line shows Shruti nos. The 7 notes are in bold. The 2nd line shows the synonyms and the 7 notes as bold and underlined. The 3rd line shows the Shrutis 'in-between the 7 notes' as bold and undelined
Bharata's Natya Shastra states in Chapter 28, Shloka 27 and 28, the shrutis in Madhyama Grama. As M1 functions as the 'new' Fundamental frequency (Shadja), M2 must become redundant as it is too close to it. Also, in this new scale, P from Shadja Grama operates as P2 or (musically, Ati-Tara Rishabha, see Nomenclature table below), and Tara Rishabha or a shruti at an Interval ratio 10/9 (Just Major Second) is absent. To create this missing Tara Rishabha, P2 must be lowered by Interval ratio of 81/80 (Pramana) creating a new shruti P1. Chaturdandi Prakashika (Sanskrit) by Pandit Venkatamakhin in Shloka 65 and 66, Chapter 3, confirms the positions of Panchama both in Shadja and Madhyama Gramas as,
Shadja GrĀma Panchame Swa Chaturtha Shruti Sansthite Swa-UpĀntya Shruti Sansthe Asmin Madhyama GrĀma Ishyate [20]
meaning,
in Shadja Grama, Panchama is positioned on its 4th Shruti, and on its previous Shruti in Madhyama Grama.
This previous Shruti P1 has a frequency of 148.148 (if Shadja is taken as 100 Hz), and can be played on 67.56% length on the string. The scale starting from M1 is close to the current version of Khamaj (raga). Now, the notes at 3, 5, 9, 13, 16, 18, and 22 becomes the Madhyama Grama, these notes are separated by 3, 2, 4, 3, 4, 2, and 4 shrutis respectively. Musically, P in Shadja Grama (3/2) operates as the Perfect 5th, and the same shruti (P2 in Madhyama Grama) operates as 9/8 (another ratio for Just Major Second) in Madhyama Grama, because the Fundamental frequency has changed to M1.
A combination of ‘Shrutis’ and ‘Nadas’ is the back-bone of Gamakas, and Alankaras[edit]
Both the types of Indian Classical Music namely the Hindustani, and the Carnatic, essentially employ a variety of musical phrases known as Gamaka (Music) (Carnatic) and Alankara (Hindustani). These phrases employ primarily a combination of 'Shrutis' (identified steady notes) and connecting Nadas' (unidentified fleeting notes) only. Chaturdandi Prakashika (Sanskrit) by Pandit Venkatamakhin in Shloka 118, Chapter 3, gives the description of Gamaka as,
Swarasya Kampo Gamakah, Shrotru Chitta SukhĀvah, Sweeya SthĀna Shruti Gatah ChhayĀm anyĀm ĀshrayĀm api [20]
meaning,
Swara's movement creates Gamaka, delighting the listeners, going from the position of its own Shruti to reside in the shadow of another. Gamaka or 'Alankara' thus means a Swara goes from its own (identifiable) Shruti to the other, making use of (unidentified connecting) 'Nadas' in-between.
In any Gamaka (Music), Alankara, or 'Inflexion', 'Ornamentation' etc., one can not have a 3rd type of note, other than a 'Shruti' and a 'Nada'. The threshold of identification of a musical note within the range of human voice of 100–1000 Hertz is 20–45 msec.[22] Shrutis can be identified by the human ear because they are played for this time limit or more. As against this, connecting Nadas are played faster than this limit, which disallows the human ear to identify them. The major difference in the two systems is the way they combine shrutis and connect nadas, resulting in characteristically different music between the styles. Many ancient Sanskrit and Tamil works refer to 22 shrutis as the foundation of the Indian Music Scale.[21]
Why does the Melakarta system (Carnatic) not have prescribed shrutis[edit]
The system of 72 basic types of singing or playing scales (Thatas) was evolved with specific mathematical combinations of the universal 12 pitch classes. The selection of the 22 Shrutis (specific frequencies) in each of them depends on the 'Raga' chosen. The Shrutis in a Raga should be ideally related to each other, by natural ratios 100:125, 100:133.33, 100:150, and 100:166.66. 'Raga' can have a 'lesser' no. of notes than those in a 'Thata'. Therefore, Shrutis can be selected only 'after' the selection of a Raga. Melakarta 72 Thatas therefore do not have 'prescribed' Shrutis with them. Only 'Raga' can have shrutis, not 'Thata'. Alaku is a name for Shruti in ancient Tamil music and 22 Shrutis are referred to as 22 Alakus. All the 22 Shrutis attain the status of Swaras, in some raga or the other.[21]
Nomenclature of 22 Shrutis/Swaras in Carnatic Music and Hindustani Classical Music[edit]
The Nomenclature in Carnatic and Hindustani systems has been imperfect largely due to the ignorance about the scientific facts about 12 Swaraprakaras (Chromatic pitch-classes) and the inter-spaced 22 Shrutis. In Carnatic nomenclature, for example, the 'Eka'-sruthi Rishabham (called as Suddha Rishabham) is followed by 'Chatu'-sruthi Rishabham, omitting the 'Dvi' and 'Tri'-sruthi versions of Rishabham. The same is true of Daivatham too. In reality, the 'Eka'-sruthi Rishabham (as a Swaraprakara) has 'Eka'-sruthi Rishabham and 'Dvi'-sruthi Rishabham (as it's 2 sruthees). Further, the 'Chatu'-sruthi Rishabham (as a Swaraprakara) has 'Tri'-sruthi Rishabham and 'Chatu'-sruthi Rishabham (as it's 2 sruthees). The same is true of Daivatham. Also, there is the creation of an additional name each for Chatu-sruthi Rishabham, Sadharana Gandharam, Chatu-sruthi Daivatham and Kaishiki Nishadam; respectively as Suddha Gandharam, Shat-sruthi Rishabham, Suddha Nishadam and Shat-sruthi Daivatham. These apparent omissions and additions confound the Carnatic Nomenclature. The all-inclusive Nomenclature for 12 Swaraprakaras and 22 Sruthis is shown in the Table.
Table shows Nomenclature for 12 Swara-prakaras and 22 Shrutis in Carnatic Classical Music.
Similarly in Hindustani Music, the names of 'Komal' and 'Shuddha' Swaras have no uniformity. The Rishabha, Gandhar, Dhaivat and Nishad have the 'Komal' version first followed by 'Shuddha'; whereas for Madhyam, there is the 'Shuddha' version first followed by 'Teevra'. These names have also been carried forward due to ignorance about the meanings of these names, and also about 22 Shrutis. 'Komal' is the 'flatter' variety of the note and the correct name for the 'sharper' version is 'Tara', not 'Shuddha'. 'Teevra' (in Sanskrit) means 'of a larger volume', not 'of a higher frequency'! Hence, 'any' note such as Rishabha, Gandhar, Madhyama, Dhaivata and Nishad can be Teevra, or of a larger volume. The correct 12 names of Hindustani 12 notes are 1) Shadja, 2) Komal Rishabha, 3) Tara Rishabha, 4) Komal Gandhara, 5) Tara Gandhara, 6) Komal Madhyama, 7) Tara Madhyama, 8) Panchama, 9) Komal Dhaivata, 10) Tara Dhaivata, 11) Komal Nishada, and 12) Tara Nishad. 'Komal' notes are subdivided into their Shrutis 'Ati-Komal' (Lower frequency version) and 'Komal' (Higher frequency version); and 'Tara' notes into 'Tara' (Lower frequency version) and 'Ati-Tara' (Higher frequency version). Out of the 22 notes thus created, the word shuddha denotes 'purity' and signifies notes with a natural ratio of 100:125:150. Seven of the 22 notes (see table) are thus additionally called shuddha. The complete nomenclature for 12 swaraprakaras and 22 shrutis in Hindustani Classical Music is shown in the table.
Table shows nomenclature for 12 swara-prakaras and 22 shrutis in Hindustani classical music.
(* Seven shuddha notes in the table are underlined and bold.)
The 12 swaraprakaras and 22 shrutis in both the Hindustani and Carnatic tables are exactly the same in terms of ratios, frequencies, and percentage of length of the string where they are played.
Sanskrit Names of 22 Shrutis[edit]
Sangita Ratnakara of Sarangadeva states in Chapter 3, shlokas 35 to 38 that Teevra, Kumudvati, Manda and Chandovati are the names of shrutis for Shadja. As Shadja is placed on the 4th shruti in this group, this means that Chandovati is the name for the shruti of Shadja. The reference further mentions in further sequence; Dayavati/ Ranjani/Raktika as shrutis for Rishabha, Roudri/Krodha for Gandhara, Vajrika/ Prasarini/Priti/Marjani for Madhyama, Kshiti/Rakta/Sandipani/Alapini for Panchama, Madanti/Rohini/Ramya for Dhaivata, and Ugra/Kshobhini for Nishada.
Why performance analysis never gives true values for 22 Shrutis[edit]
Some suggest that the best way to find the exact positions of shrutis is by analyzing the frequencies players use in actual performances.[23] This sounds simple, but runs the risk of giving multiple inaccurate values. In fact, when different artists performed raga Yaman on flute, sarangi, sitar, and voice, accuracy of pitch was found to be 'relative' and 'subjective',[27] and 'neither rigidly fixed','nor randomly varying'.[28] Further, the 'same Swara was pitched differently at different times by the same artiste in the same raga', and 'different artistes intoned the same swara differently in the same raga'.[29] Such an exercise is akin to estimating the centre of a large circlular lake by comparing intersections between ropes stretched across the surface; this gives a range of answers, and introduces difficulties in estimating accuracy. It is more practical to define the centre of a circle mathematically, and then compute the centre of the lake relative to points fixed in advance. Similarly, the values of 22 shrutis can be precisely calculated based on their natural relationships to the 22 Shruti-Mandal (Organogram) rather than an analysis of performances.
Ancient treatises on Indian classical music and performing arts[edit]
- Natya Shastra by Bharata
- Dattilam by Dattila
- Brihaddeshi by Matanga Muni
- Abhinavabharati – Abhinava Gupta's commentary on Natya Shastra
- Sangita Ratnakara by Sarangadeva
- Svaramelakalanidhi by Ramamatya
- Charurdandi Prakashika by Venkatamakhin
- Ragavibodha by Somanatha
References[edit]
- ↑ Rowell 2015, p. 149-152, 384.
- ↑ Emmie te Nijenhuis (1970). Dattilam: A Compendium of Ancient Indian Music. Brill Archive. pp. 93–96.
- ↑ Bakshi, Haresh. 101 Raga-s for the 21st Century and Beyond: A Music Lover's Guide to Hindustani Music.
- ↑ 4.0 4.1 4.2 Ellen Koskoff (2013). The Concise Garland Encyclopedia of World Music, Volume 2. Routledge. p. 936. ISBN 978-1-136-09602-0.
- ↑ N Ramanathan (1992). Jonathan Katz (ed.). The Traditional Indian Theory and Practice of Music and Dance. BRILL Academic. pp. 75–89, 143–144. ISBN 90-04-09715-5.
- ↑ 6.0 6.1 José Luiz Martinez (2001). Semiosis in Hindustani Music. Motilal Banarsidass. pp. 85–89. ISBN 978-81-208-1801-9.
- ↑ Subhash Kak, The idea of 22 shrutis. Sandhan, vol. 1, pp. 69–79, 2001
- ↑ Gareth Loy (2011). Musimathics: The Mathematical Foundations of Music. MIT Press. pp. 78–80. ISBN 978-0-262-29275-7.
- ↑ N Ramanathan (1992). Jonathan Katz (ed.). The Traditional Indian Theory and Practice of Music and Dance. BRILL Academic. p. 79. ISBN 90-04-09715-5.
- ↑ Anandi Mishra. "Young musicians fuse tradition with technology". Times of India.
- ↑ 11.0 11.1 DNA webdesk (14 July 2015). "#LifeIsMusic: Dr Vidayadhar Oke on the 22 Shrutis in Indian Classical Music". DNA India.
- ↑ 12.0 12.1 12.2 Oke, Vidyadhar (2011). Shrutigeeta. Madhav Rafter Publications. pp. 244–270. ISBN 978-81-922379-2-3.
- ↑ Ramanathan, N. Sruti in Ancient, Medieval and Modern Contexts, an article from musicresearch.in
- ↑ Krishnaswamy A. Inflexions and Microtonality in South Indian Classical Music. Frontiers of Research on Speech and Music, 2004.
- ↑ 15.0 15.1 Krishnaswamy A. On the twelve basic intervals in South Indian classical music. AUDIO ENGINEERING SOCIETY. 2003
- ↑ Datta, A. K.; Sengupta, R.; Dey, N.; Nag, D (2006). Experimental Analysis of Shrutis from Performances in Hindustani Music. Kolkata, India: SRD ITC SRA. p. 19. ISBN 81-903818-0-6.
- ↑ Ibidem. p. 28.
- ↑ Khramov, Mykhaylo (December 2011). "On Amount of Notes in Octave" (PDF). Ninaad, Journal of the ITC-SRA. Kolkata, India. 25: 31–37. ISSN 0973-3787. Archived from the original (PDF) on 18 October 2012.
- ↑ 19.0 19.1 19.2 19.3 19.4 Suvarnalata Rao, Wim van der Meer (2010). The Construction, Re-construction and Deconstruction of Shruti, in Hindustani Music : Thirteenth to Twentieth Centuries. Manohar. pp. 687, 692.
- ↑ 20.0 20.1 20.2 20.3 20.4 Ratanjankar, Shrikrishna (2015). Chaturdandi Prakashika, Hindi Translation. Sanskar Prakashan.
- ↑ 21.0 21.1 21.2 21.3 21.4 21.5 21.6 21.7 Sambamoorthy, Pichu (1954). South Indian Music (Book IV, 2nd ed.). The Indian Music Publishing House, GT. Chennai. pp. 85, 86, 89, 90, 99, 100, 104.
- ↑ 22.0 22.1 Moylan, William (2012). The Art of Recording : Understanding and Crafting the Mix. CRC Press. p. 30. ISBN 978-0415842815.
- ↑ 23.0 23.1 Thakur, Dinesh (2015). The Notion of Twenty-Two Shrutis : Frequency Ratios in Hindustani Classical Music. Resonance. pp. 515–531.
- ↑ 24.0 24.1 Bakre Sadashiv, Oke Vidyadhar (2015). Shrutividnyan Va Ragasoundarya. Rajhansa Prakashan. pp. 5, 86, 88–104. ISBN 978-81-7434-853-1.
- ↑ 25.0 25.1 Sharma, Premalata (1992). Brihaddeshi of Sri Matanga Muni. Indira Gandhi National Centre for the Arts, New Delhi.
- ↑ TEDx IIT Gandhinagar. "The science of music". TEDx.
- ↑ Jairazboy,Stone, Nazir A,A.W (1963). Intonation in Present-Day North Indian Classical Music, Bulletin of the School of Oriental and African Studies. pp. 130–1.
{{cite book}}
: CS1 maint: multiple names: authors list (link) - ↑ Rao (1990). Aesthetics of Hindustani Music : An Acoustical Study, in Actes du Colloque International Musique et Assistance Intermatique, Marseille. pp. 81–108.
- ↑ Komaragiri, Madhu Mohan (2005). Synopsis of the Doctoral Dissertation "Pitch Analysis in Karnataka Music – An Examination of Intonation and Modern theories of 22 Sruti-s". Madras University, India. pp. 1–16.
Bibliography[edit]
- Daniélou, Alain (1949). Northern Indian Music, Volume 1. Theory & technique; Volume 2. The main rāgǎs. London: C. Johnson. OCLC 851080.
- Kaufmann, Walter (1968). The Ragas of North India. Oxford & Indiana University Press. ISBN 978-0253347800. OCLC 11369.
- Lidova, Natalia (2014). "Natyashastra". Oxford University Press. doi:10.1093/obo/9780195399318-0071.
{{cite journal}}
: Cite journal requires|journal=
(help) - Martinez, José Luiz (2001). Semiosis in Hindustani Music. Motilal Banarsidass. ISBN 978-81-208-1801-9.
- Mehta, Tarla (1995). Sanskrit Play Production in Ancient India. Motilal Banarsidass. ISBN 978-81-208-1057-0.
- Randel, Don Michael (2003). The Harvard Dictionary of Music (fourth ed.). Cambridge, MA: Harvard University Press. ISBN 978-0-674-01163-2.
- Rowell, Lewis (2015). Music and Musical Thought in Early India. University of Chicago Press. ISBN 978-0-226-73034-9.
- Te Nijenhuis, Emmie (1974). Indian Music: History and Structure. BRILL Academic. ISBN 90-04-03978-3.
- Titon, Jeff Todd; Cooley; Locke; McAllester; Rasmussen (2008). Worlds of Music: An Introduction to the Music of the World's Peoples. Cengage. ISBN 978-0-534-59539-5.
