Dr. B.R. Ambedkar station, Vidhana Soudha metro station

See also: Dr. B. R. Ambedkar Balanagar metro station

Dr. B.R. Ambedkar Stn., Vidhana Soudha
Namma Metro station

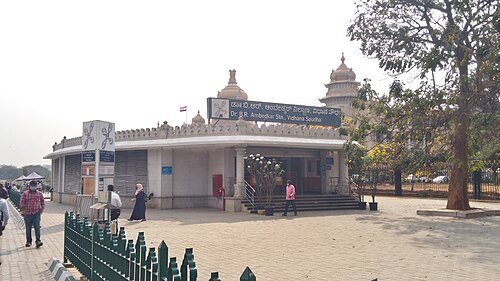

Error creating thumbnail: File missing This metro station with Vidhana Soudha behind Entrance A
Location	Ambedkar Veedhi, Sampangi Rama Nagar, Bengaluru, Karnataka 560001 India
Coordinates	12.979823°N 77.592745°E / 12.979823; 77.592745
Owned by	Namma Metro
Operated by	Bangalore Metro Rail Corporation Ltd (BMRCL)
Line(s)	Purple Line
Platforms	Island platform Platform-1 → Baiyappanahalli Platform-2 → Kengeri
Tracks	2
Construction
Structure type	Underground
Depth	4 metres (Station roof)
Platform levels	2
Disabled access	Yes
Other information
Station code	VDSA
History
Opened	30 April 2016 (2016-04-30)
Electrified	750 V DC third rail
Services
Route map Error creating thumbnail: File missing Whitefield Kadugodi Error creating thumbnail: File missing Channasandra Error creating thumbnail: File missing Kadugodi Error creating thumbnail: File missing Pattandur Agrahara Error creating thumbnail: File missing Sadaramangala Nallurhalli Whitefield TTMC Error creating thumbnail: File missing Kundalahalli Error creating thumbnail: File missing Sitharama Palya Error creating thumbnail: File missing Hoodi Junction Error creating thumbnail: File missing Garudacharapalya Error creating thumbnail: File missing Mahadevapura Krishnarajapuram Error creating thumbnail: File missing Error creating thumbnail: File missing Benniganahalli Error creating thumbnail: File missing Baiyappanahalli Error creating thumbnail: File missing Swami Vivekananda Road Error creating thumbnail: File missing Indiranagar Error creating thumbnail: File missing Halasuru Error creating thumbnail: File missing Trinity Error creating thumbnail: File missing Mahatma Gandhi Road Error creating thumbnail: File missing Error creating thumbnail: File missing Cubbon Park (Sri Chamarajendra Park) Error creating thumbnail: File missing Dr. B.R. Ambedkar station, Vidhana Soudha Error creating thumbnail: File missing Sir M. Visveshwaraya Error creating thumbnail: File missing Majestic Error creating thumbnail: File missing Error creating thumbnail: File missing City Railway Station Error creating thumbnail: File missing Error creating thumbnail: File missing Magadi Road Error creating thumbnail: File missing Hosahalli Error creating thumbnail: File missing Vijayanagar Error creating thumbnail: File missing Attiguppe Vijayanagara TTMC Error creating thumbnail: File missing Deepanjali Nagar Error creating thumbnail: File missing Mysore Road Error creating thumbnail: File missing Orange Line (Planned) Error creating thumbnail: File missing Nayandahalli Error creating thumbnail: File missing Rajarajeshwari Nagara Jnanabharathi Jnanabharathi Error creating thumbnail: File missing Pattanagere Kengeri Bus Terminal Kengeri TTMC Error creating thumbnail: File missing Kengeri Challaghatta
Location
Error creating thumbnail: File missing Dr. B.R. Ambedkar Station, Vidhana Soudha Location in Bangalore Dr. B.R. Ambedkar Station, Vidhana Soudha Location in Karnataka Dr. B.R. Ambedkar Station, Vidhana Soudha Location in India

Dr. B.R. Ambedkar Stn., Vidhana Soudha is a station on the Purple Line of the Namma Metro in Bangalore, India. It was opened to the public on 30 April 2016.

History

Construction

The Dr. B.R. Ambedkar station, Vidhana Soudha, like all other underground stations on the Purple Line, was built using the cut-and-cover method. The contract to construct the station was awarded to CEC-Soma-CICI Joint Venture. RITES was the lead consultant on the project. Construction of the station required a total work area that was about 320 m long and 48 metres wide. A total area of 133,000 sq m (about 275 metres long and 27 metres wide) up to a depth of 18 metres had to be excavated to construct the station. The excavated soil could not be utilized in the construction process as it was mostly composed of rocky material. Instead, some of the fine quality soil obtained from the excavation at the Cubbon Park metro station, which had been stored on BRV Parade Grounds, was utilized. Fine soil was also obtained from other sources. The sand and smooth rock obtained from building tunnels was also used.

Error creating thumbnail: File missing

Inside station

The station box is 13 metres long and 24 metres wide, and has no pillars. The design without pillars was chosen to enable free movement of commuters without obstruction, and for aesthetic reasons. In order to achieve the column-less design, the station box was constructed with strong concrete reinforcement. Its walls have a thickness of 1 metre, the concourse slab 0.75 metres thick, and the roof slab has thickness of 1.4 metres. The thick roof slab is designed bear the load of both the station box, and the soil above it. The roof of the station is located at a depth of 4 metres below ground level. To ensure uniformity in the construction of the walls, a specially fabricated steel gantry (10 m in width and 6 m in height) was used. The entire station box is covered with 3 mm thick bituminous membrane, a waterproofing agent, to prevent surface water from leaking into the station. After the station box was constructed, it was covered with up to 4 metres of good quality red soil. The rest of the excavated site was then refilled. After construction completed, the area was restored to its previous state by re-opening the 2-lane Dr. B.R. Ambedkar Road and the lawns in front of the Vidhana Soudha and Karnataka High Court.

Station name

On 14 April 2016, B. R. Ambedkar's 125th birth anniversary, it was announced that the proposed Vidhana Soudha metro station would be named Dr. B.R. Ambedkar station, Vidhana Soudha.

Station layout

G	Street level	Exit/Entrance
M	Mezzanine	Fare control, station agent, Ticket/token, shops
P	Eastbound	Platform 1 → Towards → Baiyappanahalli next station is Cubbon Park
	Island platform, doors will open on the right
	South West bound	Platform 2 ← Towards ← Kengeri next station is Sir M. Visveshwaraya Stn., Central College

style="color:;background:#Template:Rail color;text-align:center;padding:5px"| Dr. B.R. Ambedkar Station, Vidhana Soudha track layout
Error creating thumbnail: File missing File:BSicon STR+BSr.svg to Sir M. Visveshwaraya Stn., Central College Error creating thumbnail: File missing File:BSicon STR+BSr.svg Error creating thumbnail: File missing File:BSicon STR+BSr.svg to Cubbon Park
Station with two tracks and one Island platform
