Barak I

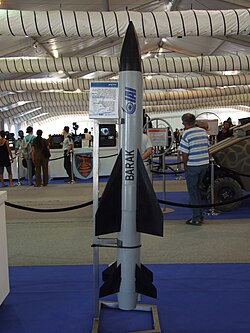

Barak SAM.jpg
Barak 1
TypeShort range surface-to-air missile
Place of originIsrael
Production history
ManufacturerIsrael Aerospace Industries &
Rafael Advanced Defense Systems
Specifications
Mass98 kg (216 lb)[1]
Length2.1 m (6.9 ft)[1]
Diameter170 mm (6.7 in)[1]
Warhead22 kg (49 lb)[1] blast fragmentation warhead
Detonation
mechanism
Proximity fuse[1]

Wingspan685 mm (27.0 in)[1]
Operational
range
0.5–12 km (0.3–7.5 mi)[1]
Flight altitude5.5 km (18,000 ft)[1]
Maximum speed Mach 2.1 (720 m/s (1,600 mph))[1]
Guidance
system
Radar CLOS guidance
Launch
platform
Surface Ship

Barak (Hebrew: ברק‎, lightning) is an Israeli surface-to-air missile (SAM) designed to be used as a ship-borne point-defense missile system against aircraft, anti-ship missiles, and UAVs.

Overview[edit]

The Barak SAM system is designed to replace or complement gun-based CIWS platforms, such as the Phalanx CIWS, with a more flexible and longer-range SAM. The missiles are mounted in an eight cell container (which requires little maintenance) and are launched straight up. The Barak SAM system's launcher uses a compact vertical launching system, with an 8-cell module weighing 1,700 kg (3,700 lb). Fire control is provided by an equally compact C3I system that weighs 1,300 kg (2,900 lb), which can either operate independently or in conjunction with other on-board sensors. Its C3I radar system provides 360-degree coverage and the missiles can take down an incoming missile as close as 500 metres (1,600 ft) away from the ship. Each Barak system (missile container, radar, computers and installation) costs about $24 million. The system is designed to defend against aircraft and anti-ship missiles, including sea-skimming missiles.[2]

Flight tests[edit]

The missile was tested on 24 March 2017 by the Indian Navy from INS Vikramaditya during Operation Readiness Inspection in the Arabian Sea.[3][4][5][6]

Operators[edit]

Map of Barak 1 operators in blue

Current operators[edit]

The -class corvette RSS Vengeance launching Barak 1 missiles

Allegations[edit]

The alleged Indian Barak missile purchase controversy was mainly due to allegations of defense industry corruption, and also due to allegations that the deal was over-priced and processed on a single-tender basis. By 2013, the allegations were unproven and the investigations were inconclusive due to lack of evidence, and the case is likely to be closed.[2][9]

The investigation of the allegations began in 2006, and were done by the Central Bureau of Investigation, which arrested several people including the former Samata Party treasurer R.K. Jain. On 23 December 2013, India's Defense Acquisition Council (DAC) headed by Defense Minister AK Antony cleared a second order of 262 Barak-I missiles for 880 crore (US$123 million).[7]
